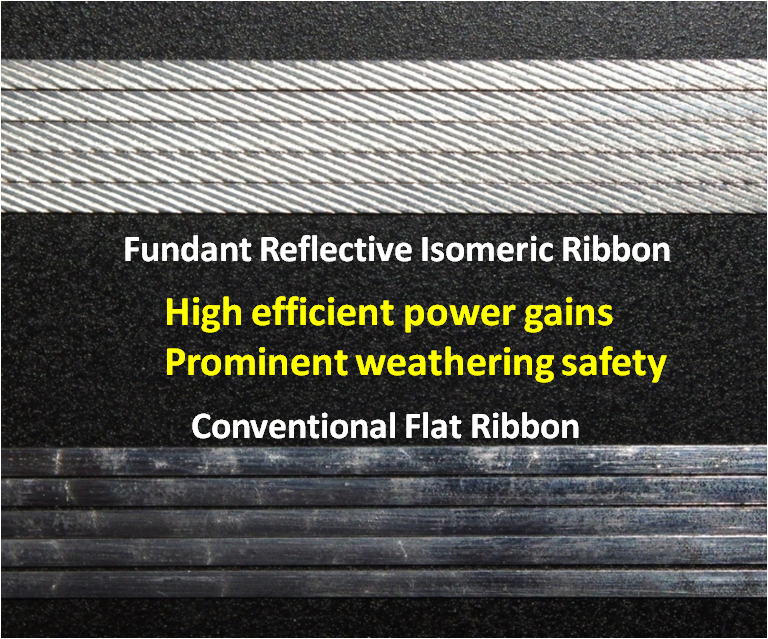

Worldwide Patented Reflective Isomeric Ribbon
Based on patented design and dedicated technology, Fundant reflective isomeric welding ribbon provides simple, economical and highly-efficient ultimate solution to the electric confluence ribbon shading problem of PV modules which has troubled the PV industry for many years.
Patented Design + Dedicated Technology
♦ Compatible to the existing PV welding equipment
Simple-and easy-to-use, without the need to change production process
Production efficiency/yield similar to traditional flat ribbon
♦ improving the module's grades distribution
Equivalent to substitute high-grade cells with low-grade ones
Complete specifications, meanwhile provide bulk customization services
♦ Strengthening module weatherability
Superior soldering intensity compared to conventional flat ribbon
Reducing local stress concentration with design of surface grooves
Simple-and easy-to-use, without the need to change production process
Production efficiency/yield similar to traditional flat ribbon
♦ improving the module's grades distribution
Equivalent to substitute high-grade cells with low-grade ones
Complete specifications, meanwhile provide bulk customization services
♦ Strengthening module weatherability
Superior soldering intensity compared to conventional flat ribbon
Reducing local stress concentration with design of surface grooves
Standard of Reflective Isomeric Ribbon
|
||||||||||||||||||
|
1 The data above is just based on ribbon of 4BB/1.1*0.25mm or 5BB/0.9*0.25mm (total shading area accounts for 2.8% of module
surface area).The competitive power gain is higher of wider ribbon, which secures low - grade batteries to replace high - grade ones.
2 Continue to use the production plan of conventional flat ribbon with two/three lower grade cells substituted.
surface area).The competitive power gain is higher of wider ribbon, which secures low - grade batteries to replace high - grade ones.
2 Continue to use the production plan of conventional flat ribbon with two/three lower grade cells substituted.
Product Specification
1.0mm-wide welding strip as example
| Type | Project Classification | Project Name | Technical Requirement |
| Copper base | Coating composition | Component | TU1 |
| Resistivity | ≤1.7541*10-8Ωm | ||
| Solder |
Coating composition | Tin(Sn) composition | 65(±5) % |
| Lead(Pb) composition | 35(±5) % | ||
| Solder ribbon |
Performance | Resistance | ≤85mΩ/m |
| Mechanical properties | Tensile strength | ≥ 140 Mpa | |
| Elongation | ≥20% | ||
| Yield force | ≤20N | ||
| Yield strength | ≤65MPA | ||
| Size | Thickness | 0.26(-0.005,+0.015)mm | |
| Width | 1.0(±0.1)mm | ||
| Minimum thickness | 14.0(±1)um | ||
| Deformation | Curved sickle | ＜5mm/m | |
| Inclination angle | 75(±3)° | ||
| Appearance | Surface quality | No copper leaking and tin flaking | |
| No black spot, rust and cracks | |||
| No tin plump and burrs on the edge |
